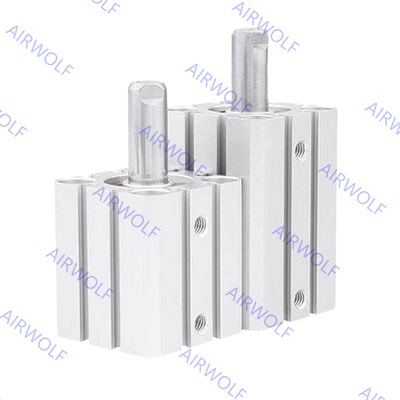

Name: Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder
Brand: Airwolf Automation
SKU: MCJA-11-20-45, MCJA-11-20-50, MCJA-11-25-5, MCJA-11-25-10
Price: 34.00 USD
Availability: InStock

Ana sayfa Ürünler Air Pnömasilindirler

Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder

Ürün ayrıntıları:

Menşe yeri:	Tayvan, Çin
Marka adı:	Mindman, AIRWOLF or OEM
Sertifika:	CE, ISO9001
Model numarası:	MCJA-11-20-45, MCJA-11-20-50, MCJA-11-25-5, MCJA-11-25-10

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	5-63USD
Ambalaj bilgileri:	Kutular, Kartonlar, Paletler, Plastik poşetler
Teslim süresi:	1-7 iş günü
Ödeme koşulları:	Banka havalesi, Western Union, PayPal
Yetenek temini:	Haftada 1000 adet

İletişim

Detaylı ürün tanımı

Ürün Kodu:	MCJA-11-20-45, MCJA-11-20-50, MCJA-11-25-5, MCJA-11-25-10	Gövde malzemesi:	Alüminyum Alaşım
Piston Ambalaj Malzemesi:	NBR	Çalışma basıncı:	0,05~1 MPa
Çalışma Sıcaklığı:	-5~+60°C(Donma yok)	Çalışma Ortamı:	Hava
Delik Boyutu:	20, 25mm	İşlev:	Çift oyunculuk
Vurgulamak:	double acting compact cylinder , pneumatic air cylinder with warranty , compact cylinder MCJA series

Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder

Built from carefully selected aluminum alloy with hard-anodized treatment, the MCJA body resists wear and corrosion in continuous-duty pneumatic systems, while the extruded profile integrates a peripheral sensor groove that lets proximity switches mount flush and adjust position without external brackets. Installation relies on countersunk-hole tooth mounting, so the cylinder sits directly against the fixture without extra foot brackets, cutting parts count and keeping the envelope tight around the actuator itself.

Order Codes:

Item Code	Piston (mm)	Stroke (mm)	Type
MCJA-11-20-45	20	45	Double acting
MCJA-11-20-50	20	50	Double acting
MCJA-11-25-5	25	5	Double acting
MCJA-11-25-10	25	10	Double acting

Specification:

Model		MCJA
Acting type		Double acting / Single acting							Double acting
Tube I.D. (mm)		12	16	20	25	32	40	50	63	80	100
Port size		M5×0.8				Rc1/8		Rc1/4			Rc3/8
Medium		Air
Operatingperssurerange (MPa)	Double acting	0.05~1		0.03~1		0.02~1
	Single acting	0.2~1		0.15~1		0.1~1			—
Proof pressure		1.5 MPa
Ambient temperature		-5°C~+60°C (No freezing)
Available speed range		50~500 mm/sec

Material:

Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder

Dimensions:

Mindman MCJA-11-20-45 MCJA-11-20-50 MCJA-11-25-5 MCJA-11-25-10 Double acting Compact Cylinder

Our Company:

Airwolf Automation is a world-renowned supply chain management company. A complete supply chain with 500,000 industrial parts can be supplied to 160 countries.

More than a thousand cooperative brands, super supply chain management ability, to ensure the fastest speed to meet your procurement needs.

Delivery:

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. Also we can send by your delivery acount if you want.

4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Q&A:

1. Q: Do you provide warranty for the goods?

A: Yes, we provide warranty for all the goods from us.

2. Q: Could seek best provide technology support?

A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

3. Q: Does seek best keeps goods in stock or only trading?

A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

4. Q:How about the terms of payment?

A:Generally through T/T and Paypal,Western Union also accept.
